Connor Marine Engineering Inc

C-150

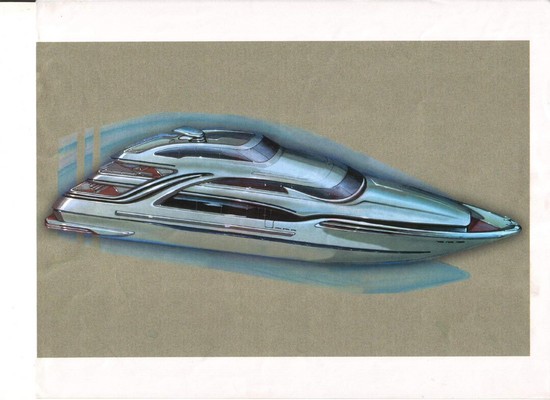

One of Connor Marine's premier designs, the C-150 may be adapted to hull lengths of 50' to 185' with a speed capability of 90 knots.  Fully model tested and performance verified at U.S. Navy David Taylor model basin, Carderock, Va.

C-150

HIGH SPEED MOTOR VESSEL

SPECIFICATIONS                                             PROPULSION

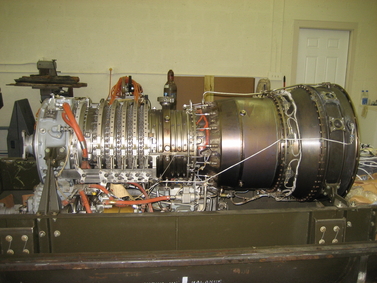

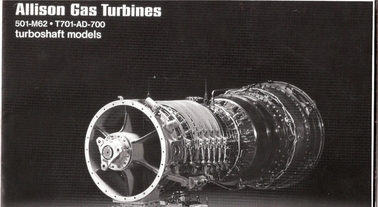

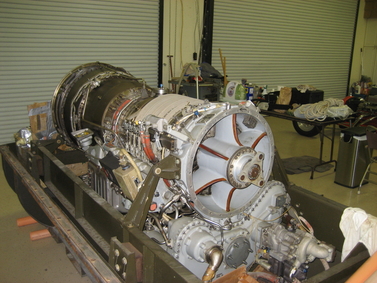

LOA - 150'                                                             3 x ALLISON M-62-501
BEAM - 29'                                                                          @7200 HP ea.
LWL - 96.25'
LCG - 41'                                                               2 x CATERPILLAR 3412C
DRAFT - 6.5'                                                                  @1350 HP ea.
FUEL - 27,898 gal
WATER - 2198 gal                                                 3 x Planetary Turbine
                                                                                        Reduction Gears
WEIGHT:                                                                         7 : 1 Ratio
FULL LOAD - 437, 828 lbs
LIGHT SHIP - 224, 147 lbs*                                    2 x Combining Transfer
*no liquids, no interior                                                       Cases with neutral
                                                                                          couplings

                                                                                 3 x Surface Drives, fixed
                                                                                          shaft w/ rudder

                                                                                  3 x Propeller - surface
                                                                                            piercing
